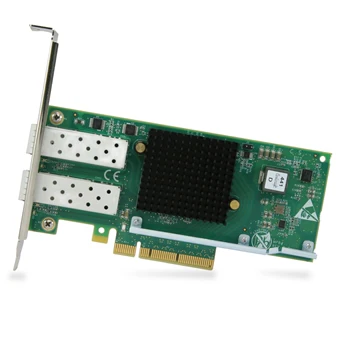

Intel X710 Ethernet Network Interface Card, 10G Dual Port SFP+, PCIe 3.0 x8

Intel X710 Ethernet Network Interface Card, 10G Dual Port SFP+, PCIe 3.0 x8



10 GIGABIT ETHERNET CARD DUAL PORT FIBER SFP+ NETWORK INTERFACE CARD INTEL® X710BM2 BASED

High Performance, Dual Port 10GbE Ethernet Adapter, Compatible With the Netgate® 8300, 1537, and 1541.

This 10 Gigabit Ethernet Dual Port SFP+ Computing PCI Express Network Interface Card offers simple integration into any PCI Express X8 slot to interface with 10Gigabit networks. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications. Based on the Intel X710 Ethernet controller, the card has a fully integrated Gigabit Ethernet Media Access Control (MAC) and SFI Interface.

In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.

This 10 Gigabit Ethernet PCI-Express Network Interface Card is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications, and environments within high-performance servers.

KEY FEATURES:

  • Supports Direct Attached Copper cable
  • SFP+ approved transceivers
  • RoHS compliant

Performance Features*:

  • Support for jumbo frame up to 9.5KB
  • Flow control support
  • Priority Flow Control (draft IEEE 802.1Qbb)
  • Enhanced Transmission Selection (draft IEEE802.1az)
  • Statistics management and RMON
  • 802.1q VLAN support
  • DCB/DCB-X support
  • Message Signal interrupts (MSI-X)
  • Storage – Enabling competitive performance with native OS intelligent offload solutions, including NAS, iSCSI and FCoE

Host Interface:

  • PCI Express GEN3 X8 lanes
  • Support PCI Express Base Specification 3.0 (8GT/sec)

LAN and Virtualization Features*:

  • Network Virtualization offloads for VXLAN and NVGRE
  • Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
  • Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh
  • Physical Functions – Up to 8 per port, up to 16 per device
  • Support for 128 Virtual Device Queues (VMDq) per port
  • Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA)
  • Virtualization – Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)

TCP/IP/L2 features*:

  • Receive Side Scaling (RSS)
  • Large Send Offload (LSO)
  • TCP/UDP/IP/SCTP Checksum Offload
  • IPV4, IPV6

SPECIFICATION:

SFP+ 10GIGABIT ETHERNET TECHNICAL SPECIFICATIONS ADAPTERS:

SFP+ (Small Form Factor Pluggable) supports: SFI interfaces supports 10GBase-R PCS and 10 Gigabit PMA in order to connect with SFP+ to 10GBase-SR / / 1000Base-SX / 10GBase-LR and SFP+ Direct Attach
10GBase-SR SFP+:
IEEE Standard / Network topology:
Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM LAN PHY)
10GBase-SR SFP+:
Data Transfer Rate:
10.3125GBd
10GBase-SR SFP+:
Cables and Operating distance Up to:
62.5um, 160MHz/Km 26m
62.5um, (OM1)200MHz/Km 33m
50um, 400MHz/Km 66m
50um, (OM2)500 MHz/Km 82m
50um, (OM3)2000MHz/Km 300m
10GBase-LR SFP+:
IEEE Standard / Network topology:
Fiber 10Gigabit Ethernet, 10GBASE-LR (1310nM LAN PHY)
10GBase-LR SFP+:
Data Transfer Rate:
10.3125GBd
10GBase-LR SFP+:
Cables and Operating distance Up to:
Single-Mode: 10000m at 9um
10GSFP+Cu :
IEEE Standard / Network topology:
Copper 10Gigabit Ethernet, 10GSFP+Cu (Direct Attach)
1000Base-SX / 10GBase-SR SFP+:
IEEE Standard / Network topology:
Fiber Gigabit Ethernet, 1000Base-SX (850nM LAN PHY)
Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM LAN PHY)
1000Base-SX / 10GBase-SR SFP+:
Data Transfer Rate:
10.3125GBd / 1.25GBd
10000Base-SX / 10GBase-SR SFP+:
Cables and Operating distance Up to:
10000Base-SX:
62.5um, 160MHz/Km 220m
62.5um, (OM1)200MHz/Km 275m
50um, 400MHz/Km 500m
50um, (OM2)500 MHz/Km 550m
50um, (OM3)2000MHz/Km >550m
10GBase-SR:
62.5um, 160MHz/Km 26m
62.5um, (OM1)200MHz/Km 33m
50um, 400MHz/Km 66m
50um, (OM2)500 MHz/Km 82m
50um, (OM3)2000MHz/Km 300m
1000Base-LX / 10GBase-LR SFP+:
IEEE Standard / Network topology:
Fiber Gigabit Ethernet, 1000Base-LX (1310nM LAN PHY)
Fiber 10Gigabit Ethernet, 10GBASE-LR (1310nM LAN PHY)
1000Base-LX / 10GBase-LR SFP+:
Data Transfer Rate:
10.3125GBd / 1.25GBd
1000Base-LX / 10GBase-LR SFP+:
Cables and Operating distance Up to:
10000Base-LX:
Single-Mode: 5000m at 9um
10GBase-LR:
Single-Mode: 10000m at 9um
1000Base-T SFP:
IEEE Standard / Network topology:
1000BASE-T Ethernet

OPERATING SYSTEMS SUPPORT

Operating system support: Windows
Linux
FreeBSD
VMware

GENERAL TECHNICAL SPECIFICATIONS

Interface Standard: PCI-Express Base Specification Revision 3.0 ( 8 GTs)
Board Size: Low profile short add-in card: 145.542mm X 64.389mm (5.730”X 2.535”)
PCI Express Card Type: X8 Lane
On Board Connector Voltage: +12V +/-8%
PCI Connector: X8 Lane
Controllers: Intel X710BM2
Holder: Metal Bracket
Operating Temperature: 0°C – 45°C (32°F – 113°F)
Storage: -40°C–65°C (-40°F–149°F)
EMC Certifications: FCC 47CFR Part 15:2013, Subpart B Class B
Conducted emissions
Radiated emissions
EN 55022: 2010, Class B
Conducted disturbance at mains terminals
Conducted disturbance at telecommunication port
Radiated disturbance
EN 61000-3-2: 2006+A1(09)+A2(09)
Harmonic current emissions
EN 61000-3-3: 2008
Voltage fluctuations and flicker
EN 55024: 2010
Immunity to electrostatic discharge (ESD)
Radiated immunity to radio frequency electromagnetic field
Conducted immunity to electrical fast transients / bursts (EFT/ B)
Conducted immunity to voltage surges
Conducted immunity to disturbances induced by radio frequency field
Conducted immunity to voltage dips and short interruptions

LEDS

LEDs: (2) LEDs per port
Link Speed:
Turns on Green 10G Link.
Turn on Yellow on 1G Link
Link/Act :
Turns on link (Green),
Blinks on activity (Green)
LEDs location: LEDs are located on the PCB, visible via holes in the metal bracket
Connectors: (2) SFP+ cage


ADDITIONAL INFORMATION:

  • If you are utilizing this card in the Netgate 1537 or 1541, you MUST add an additional 40mm case fan with at least 200 lf/m.
  • PLEASE CONTACT US IF YOU ARE ADDING THIS CARD TO THE Netgate 1541 OR 1537 SYSTEM FOR ADDITIONAL REQUIRED COMPONENTS.
  • * FEATURES AND THROUGHPUT ARE SUBJECT TO HARDWARE AND OPERATING SYSTEM SUPPORT.

WARRANTY AND SUPPORT INFORMATION:

  • No returns
  • 1 year manufacturers warranty
  • All Specifications subject to change without notice.
